LY-BO150014

Category :
BOSCH CAR STARTER (博世轿车起动机)
Browse number : ...
Release time : 2026-03-30

Message

Detailed Description
Reference number
Application

Starters

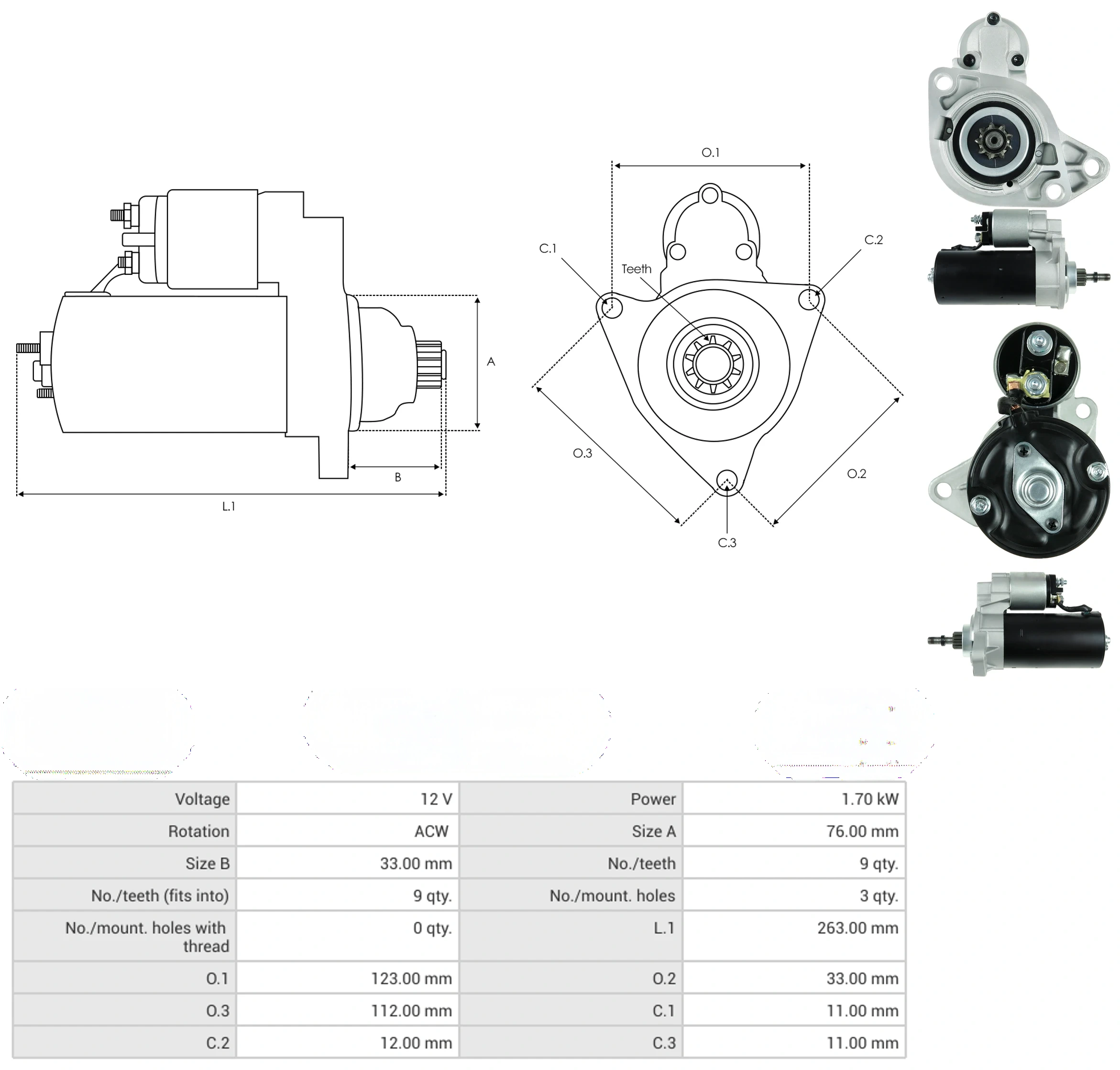

Voltage [ V ]	12
Power [ kW ]	1.70
Rotation	ACW
Size A [ mm ]	76.00
Size B [ mm ]	33.00
No./teeth [ qty. ]	9
No./teeth (fits into) [ qty. ]	9
No./mount. holes [ qty. ]	3
No./mount. holes with thread [ qty. ]	0
L.1 [ mm ]	263.00
O.1 [ mm ]	123.00
O.2 [ mm ]	33.00
O.3 [ mm ]	112.00
C.1 [ mm ]	11.00
C.2 [ mm ]	12.00
C.3 [ mm ]	11.00

S0045AS-PLList
0001110001BOSCHList
0001110002BOSCHList
0001110014BOSCHList
0001110015BOSCHList
0001110133BOSCHList
0001110134BOSCHList
0001117008BOSCHList
0001317009BOSCHList
0986013050BOSCH
B001117071BOSCHList
111060CARGO
F032111060CARGO
1516724RDAF
DRS3050DELCO
8EA012527-001HELLA
8EA726055-001HELLA
11.130.722ISKRA / LETRIKA
AZE2536ISKRA / LETRIKAList
IS0722ISKRA / LETRIKA
063720295010MAGNETI MARELLI
943251655MAGNETI MARELLI
943251655010MAGNETI MARELLI
944280130500MAGNETI MARELLI
MQS295MAGNETI MARELLI
MRS13050MAGNETI MARELLI
MSR483MAGNETI MARELLI
72735930MAHLE
MS302MAHLE
35259910PRESTOLITE
M1210GPRESTOLITE
436020VALEO
438495VALEO
VS255VALEO
068911023DXVW
068911023EXVW
068911023GVW
068911023GXVW
068911023JXVW
068911023MXVW
068911024KVW
068911024KXVW
176911023VW
PRSS2513EFFE
STRS2513EFFE
AC-CBS0295ACAUTO
25-1013CTAINDE
CGB-51013AINDE
30-0120AIRSTAL
10440391ALANKO
10440399ALANKO
ANM15270ANDEL
ANM15270XANDEL
A13050ATL AUTOTECHNIK
AES5128AUTOELECTRO
BOL-B051056BOLK
BST2379BORG & BECK
STA0092RBOVEZ
S100263BTS TURBO
BREF0320986013050CARWOOD GROUP
BREF032111060CARWOOD GROUP
CST10137ASCASCO
3582CEVAM
CMA-621334COMLINE
CST0382COMLINE
026020DA SILVA
JD026020DA SILVA
MSQ0212DA SILVA
311025092DRI
11398EAI
STR1533ELECTROLOG
STR79053ELECTROLOG
25-1013ELSTOCK
220189ERA
220189AERA
11013050EUROTEC
103180FARCOM
8013050FRIESEN
SG0027GHIBAUDI
SG0027RBGHIBAUDI
CS295HC PARTS
HCS295HC-PARTS
3116639HENKEL PARTS
3129245HENKEL PARTS
10010137AVITAB AUTOMOTIVE
STB0295KRAUF
10295KUHNER
22.0295LAUBER
330447LOGISTIK
LRS00528LUCAS
LRS528LUCAS
13888MAPCO
5010435MEAT & DORIA
4716240NK
01342OSSCA
8213228POWERMAX
88213228POWERMAX
300.503.093.010PSH
300.503.093.018PSH
300.503.093.215PSH
300.503.093.311PSH
300.503.093.340PSH
300.503.093.440PSH
300.503.093.460PSH
S132.158PSH
S144.970PSH
20401731BNREAL
011-001-000029RREMANTE
RNL1305RNL
RNL1305TRNL
6010137.0SANDO
S12BH0437A2SIDAT
MAV6790SIOM
VW9017SNRA
SS829SOVEREIGN
STX200072STARDAX
STX200072RSTARDAX
398ST11STARTCAR
TT15385TESLA TECHNICS
TT15385PROTESLA TECHNICS
ST00319TMI
17030NWAI / TRANSPO
17030RWAI / TRANSPO
WST00363WALKER
WG2471112WILMINK GROUP
91-15-6914WILSON
91-15-6914NWILSON
STR10044WOODAUTO
WOOSTR2203WOODAUTO

Brand	Model	Type	Year
VW	GOLF I (17) 1.5 D	CK	08.1976 - 07.1980
VW	JETTA I (16) 1.5 D	CK	08.1978 - 07.1980
VW	GOLF II Van (19E, 1G1) 1.6		08.1989 - 07.1991
VW	CADDY I (14) 1.6 D	CR	08.1982 - 07.1992
VW	JETTA I (16) 1.6 D	CR	08.1980 - 02.1984
VW	GOLF I (17) 1.6 D	CR	08.1980 - 07.1983
VW	GOLF I (17) 1.6 D	JK	08.1980 - 07.1983
VW	CADDY I (14) 1.6 D	JK	08.1982 - 07.1992
VW	JETTA I (16) 1.6 D	JK	08.1980 - 02.1984
VW	GOLF II (19E, 1G1) 1.6 D	JP	08.1983 - 10.1991
VW	JETTA II (19E, 1G2, 165) 1.6 D	JP	01.1984 - 10.1991
VW	GOLF II Van (19E, 1G1) 1.6 D	JP	08.1983 - 07.1991
VW	CADDY I (14) 1.6 D	ME	08.1982 - 07.1992
VW	GOLF II (19E, 1G1) 1.6 D	ME	08.1983 - 10.1991
VW	GOLF II (19E, 1G1) 1.6 D	ME	08.1983 - 10.1991
VW	JETTA II (19E, 1G2, 165) 1.6 D	ME	01.1984 - 10.1991
VW	GOLF II (19E, 1G1) 1.6 TD	1V	08.1989 - 10.1991
VW	JETTA II (19E, 1G2, 165) 1.6 TD	1V	01.1990 - 10.1991
VW	JETTA I (16) 1.6 TD	CY	03.1982 - 02.1984
VW	GOLF I (17) 1.6 TD	CY	03.1982 - 07.1983
VW	GOLF II (19E, 1G1) 1.6 TD	JR	08.1983 - 10.1991
VW	JETTA II (19E, 1G2, 165) 1.6 TD	JR	01.1984 - 10.1991
VW	JETTA II (19E, 1G2, 165) 1.6 TD	MF	01.1984 - 10.1991
VW	GOLF II (19E, 1G1) 1.6 TD	MF	08.1983 - 10.1991
VW	PASSAT B3/B4 (3A2, 35I) 1.6 TD	RA	08.1988 - 09.1993
VW	GOLF II (19E, 1G1) 1.6 TD	RA	04.1989 - 10.1991
VW	JETTA II (19E, 1G2, 165) 1.6 TD	RA	04.1989 - 10.1991
VW	PASSAT B2 (32B) 1.6 TD	RA	08.1988 - 07.1989
VW	PASSAT B3/B4 Variant (3A5, 35I) 1.6 TD	RA	08.1988 - 10.1993
VW	GOLF II (19E, 1G1) 1.6 TD	SB	04.1989 - 10.1991
VW	JETTA II (19E, 1G2, 165) 1.6 TD	SB	04.1989 - 10.1991
VW	PASSAT B3/B4 Variant (3A5, 35I) 1.6 TD	SB	08.1988 - 10.1993
VW	PASSAT B3/B4 (3A2, 35I) 1.6 TD	SB	08.1988 - 09.1993
VW	PASSAT B2 Variant (33B) 1.9	WN	01.1981 - 07.1983
VW	PASSAT B3/B4 (315, 3A5) 1.9 TD	AAZ	10.1993 - 12.1996
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 1.9 TD	ABL	10.1992 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 1.9 TD	ABL	10.1992 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D	AAB	09.1990 - 04.1998
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D	AAB	09.1990 - 04.1998
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.4 D	AAB	07.1990 - 04.1998
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.4 D	AJA	08.1997 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D	AJA	08.1997 - 04.2003
VW	CALIFORNIA T4 Camper (7DJ, 7DK, 70J) 2.4 D	AJA	05.1998 - 04.2002
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D	AJA	08.1997 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	AAF	11.1990 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5	AAF	11.1990 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AAF	09.1990 - 06.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	ACU	09.1990 - 06.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	ACU	11.1990 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5	ACU	11.1990 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AEN	09.1990 - 06.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	AEN	11.1990 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5	AEN	11.1990 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	AET	08.1996 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AET	08.1996 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5	AET	08.1996 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	AEU	11.1990 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5	AEU	11.1990 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AEU	09.1990 - 06.2003
VW	CALIFORNIA T4 Camper (7DJ, 7DK, 70J) 2.5	AEU	05.1998 - 04.2002
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	APL	08.1996 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5	APL	08.1996 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	APL	08.1996 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5	AVT	08.1996 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	AVT	08.1996 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AVT	08.1996 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro	AAF	08.1992 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 Syncro	AAF	11.1992 - 11.2001
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 Syncro	AAF	11.1992 - 11.2001
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 Syncro	ACU	11.1992 - 11.2001
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 Syncro	ACU	11.1992 - 11.2001
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro	ACU	08.1992 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 Syncro	AET	08.1996 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 Syncro	AET	08.1996 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro	AET	07.1996 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 Syncro	AEU	11.1992 - 11.2001
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro	AEU	08.1992 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 Syncro	AEU	11.1992 - 11.2001
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 Syncro	APL	08.1996 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro	APL	07.1996 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 Syncro	APL	08.1996 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro	AVT	07.1996 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 Syncro	AVT	08.1996 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 Syncro	AVT	08.1996 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	ACV	09.1995 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 TDI	ACV	09.1995 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI	ACV	09.1995 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 TDI	AJT	12.1998 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI	AJT	05.1998 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	AJT	05.1998 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI	AUF	09.1995 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	AUF	09.1995 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 TDI	AUF	09.1995 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	AYC	09.1995 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI	AYC	09.1995 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 TDI	AYC	09.1995 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	AYY	05.1998 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 TDI	AYY	12.1998 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI	AYY	05.1998 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI Syncro	ACV	05.1998 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI Syncro	ACV	01.1996 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 TDI Syncro	ACV	09.1995 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI Syncro	AXL	05.1998 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI Syncro	AXL	01.1996 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.5 TDI Syncro	AXL	09.1995 - 04.2003
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.8	AES	05.1996 - 05.2000
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR 6	AES	11.1995 - 04.2000
VW	PASSAT B3/B4 Variant (3A5, 35I) 2.8 VR6	AAA	06.1991 - 05.1997
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.8 VR6	AES	05.1996 - 05.2000
VW	TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.8 VR6	AMV	06.2000 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.8 VR6	AMV	06.2000 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR6	AMV	04.2000 - 04.2003
VW	TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) 2.8 VR6	AXK	06.2000 - 04.2003
VW	TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR6	AXK	04.2000 - 04.2003
