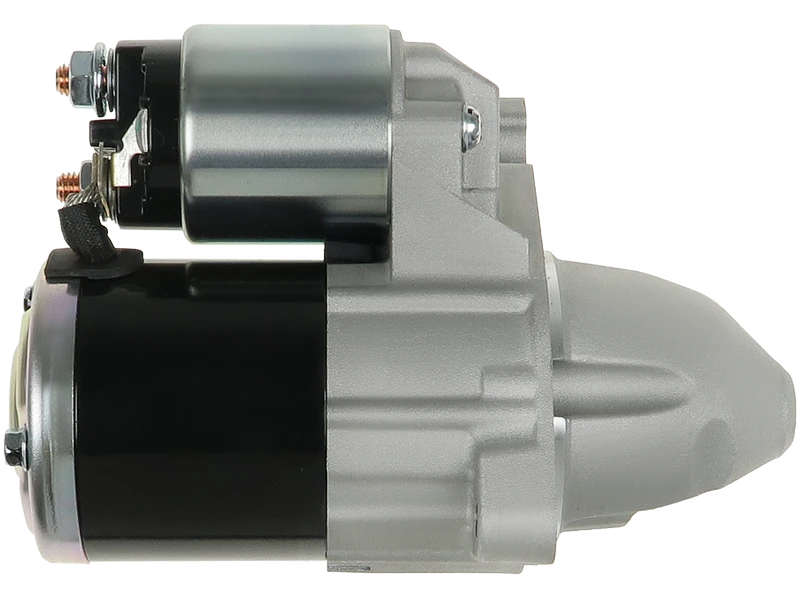

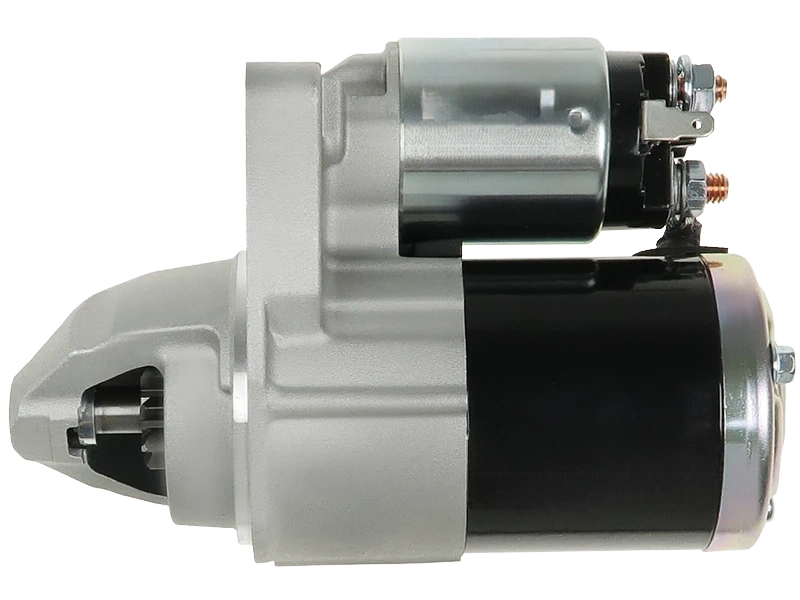

LY-MI100131

  • Detailed Description
  • Reference number
  • Application
Starters
Voltage [ V ]	12
Power [ kW ]	1.20
Rotation	CW

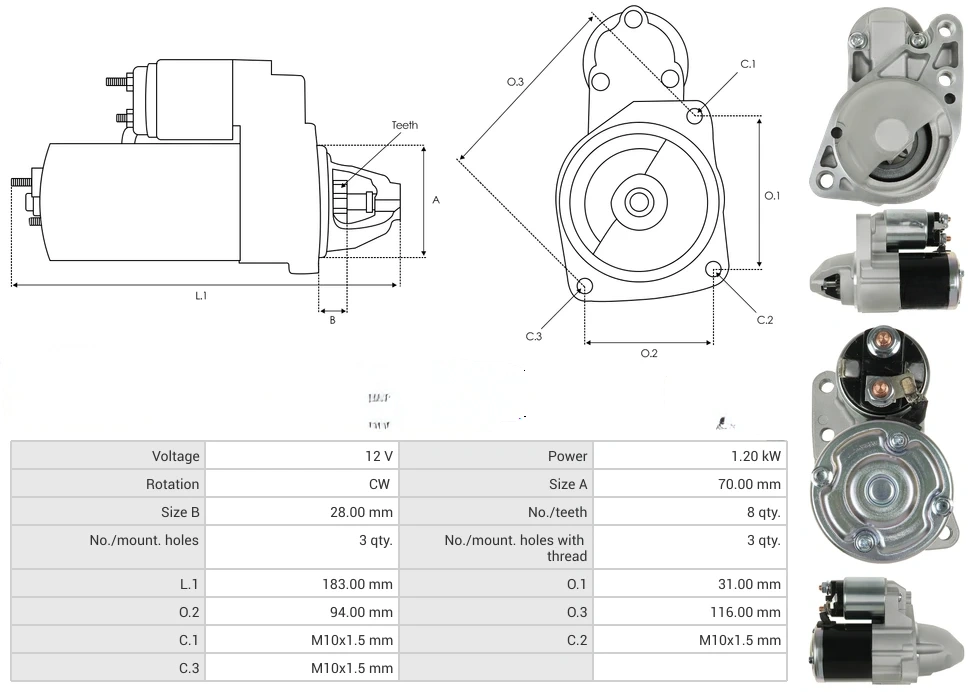

Size A [ mm ]	70.00
Size B [ mm ]	28.00
No./teeth [ qty. ]	8
No./mount. holes [ qty. ]	3
No./mount. holes with thread [ qty. ]	3
L.1 [ mm ]	183.00
O.1 [ mm ]	31.00
O.2 [ mm ]	94.00
O.3 [ mm ]	116.00
C.1 [ mm ]	M10x1.5
C.2 [ mm ]	M10x1.5
C.3 [ mm ]	M10x1.5
UD13789SAS-PL
56029584AACHRYSLER
RL029584AACHRYSLER
M000T34071MITSUBISHIList
M000T34071ZCMITSUBISHIList
M0T34071MITSUBISHIList
M0T34071ZCMITSUBISHIList
S-80530DIXIE
STR5414ELECTROLOG
256106KUHNER
19141NWAI / TRANSPO
91-27-3490WILSON
Brand	Model	Type	Year
CHRYSLER	200 Saloon 2.4	ED3	01.2011 - 12.2015
CHRYSLER	200 Saloon 2.4	EDG	01.2011 - 12.2015
DODGE	AVENGER 2.4	ED3	06.2007 - 12.2014
DODGE	AVENGER 2.4	EDG	06.2007 - 12.2014
DODGE	AVENGER 2.4	EDG	06.2007 - 12.2014
FIAT	FREEMONT (345_) 2.4	ED3	08.2011 - 12.2015
FIAT	FREEMONT (345_) 2.4	EDG	08.2011 - 12.2015
